This is heat sealing and cold cutting bag making machine, which has separate cutting knife and heat sealing knives. The machine is equipped with 1 cutting knife, 2 double-sided heat sealing knives, 1 side is double line can do undershirt bags, 1 side is single line can do flat bags (need to move away from the automatic punch).

Product Detail

Features:

● 4 lines T-shirt bag making machine

● High production efficiency to save manpower and time

● From film roll to final bag, one process flow

● It's easy to adjust the bag length, production speed, stacks on the interface

● Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment

● Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses

● Automatic error proof system

● Specially designed to produce t-shirt bags without printing.

Technical parameters

Model	XY-400x4	XY-500x4
Bag width	340mmx4 (Blank bag) 340mmx1 (Printed bag)	440mmx4 (Blank bag) 440mmx1 (Printed bag)
Bag length	330-660mm	330-660mm
Speed	10-120 PCS/min x4	10-120 PCS/min x4
Bag single thickness	0.03-0.16mm	0.03-0.16mm
Power	7kw	12.5kw
Weight	2500kg	3000kg
Machine size	6.5x2.3x1.9m	6.5x2.5x1.9m

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

Possible Product

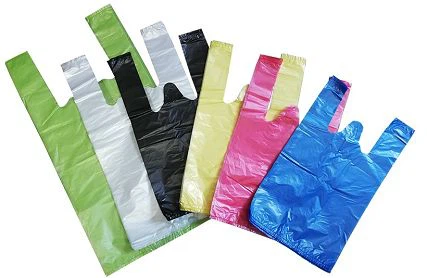

Non printer T-shirt bag

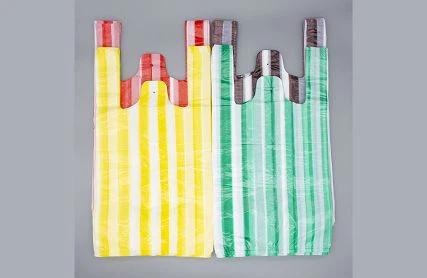

Double strip color t-shirt bag

Bottom sealing bag
