The side seal bag making machine delivers up to 150 strokes / minute and is suitable for LDPE / HDPE / PP / BOPP films. There are a various attachments available for this machine to make a variety of bags like handle punch, pre sealer, bottom gusset, inside / outside lip former , lateral sealer, perforation, tape applicator for courier bags, web aligner etc.

Product Detail

Features:

High production efficiency to save manpower and time

Computer control over the entire process

From film roll to final bag, one process flow

Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed

Automatically stop when running out of film

Automatically stop when color scanning misses

Technical parameters

Model	XY-600	XY-800	XY-1000
Max.bag width of sealing	990mm	990mm	990mm
Max.bag length of sealing	550mm	750mm	950mm
Bag thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Bag making speed	40-150pcs/min	40-150pcs/min	40-150pcs/min
Main motor	1.1kw	1.5kw	2.2kw
Weight	700kg	900kg	1000kg
Machine size	3.0x1.2x1.5mm	3.0x1.4x1.5m	3.0x1.6x1.5m

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

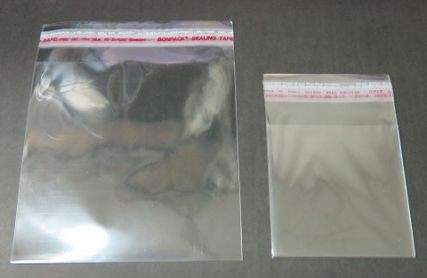

Possible Product

PE Side sealing shopping bag

Food Side sealing bag

OPP Side sealing bag
