K57 / KA57 / KF57 / KAF57 helical gear worm gear reducer (without motor)
K57 / KA57 / KF57 / KAF57 helical gear worm gear reducer (without motor) series worm gear reducer has the usual characteristics, the machine also uses the form of helical gear worm gear, which makes the structure more reasonable, not only changing the transmission efficiency and changing the load capacity higher than Single-stage worm gear drive, but also reduces the space occupation in the structural layout, and at the same time can obtain a larger transmission ratio under similar volume conditions.It is more conducive to device configuration.The machine can be used in combination with various speed reduction and gearboxes to meet different usage requirements.

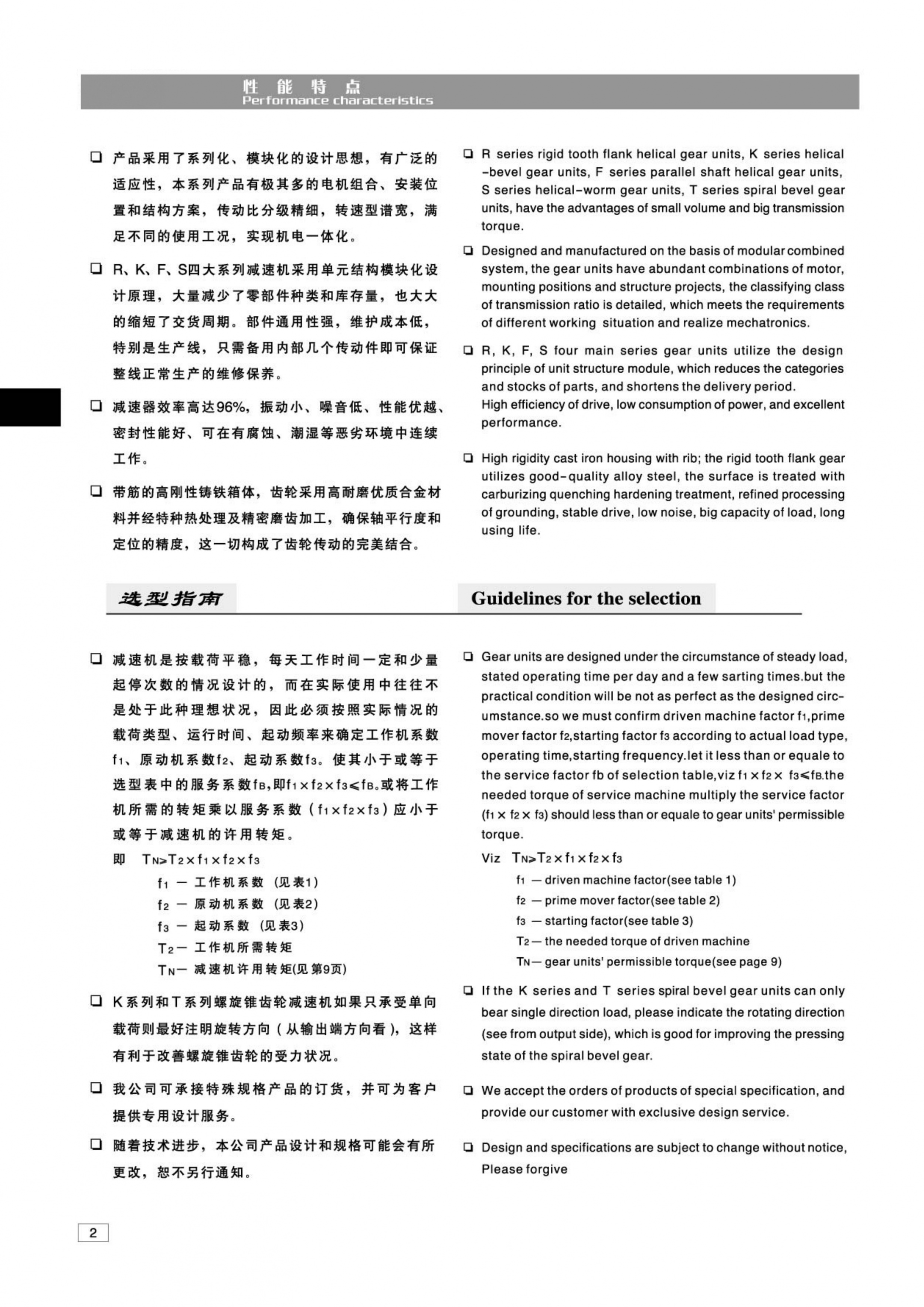

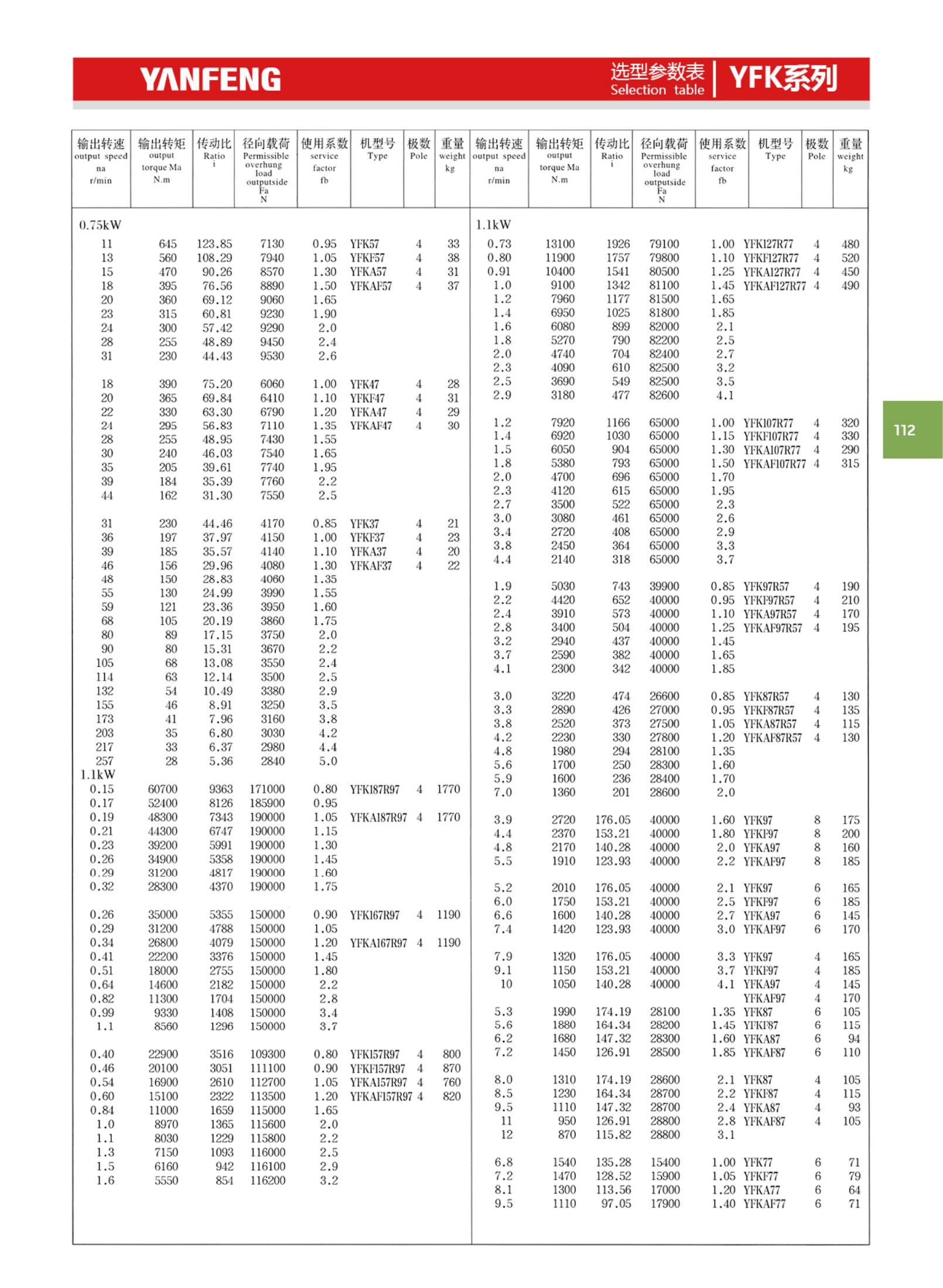

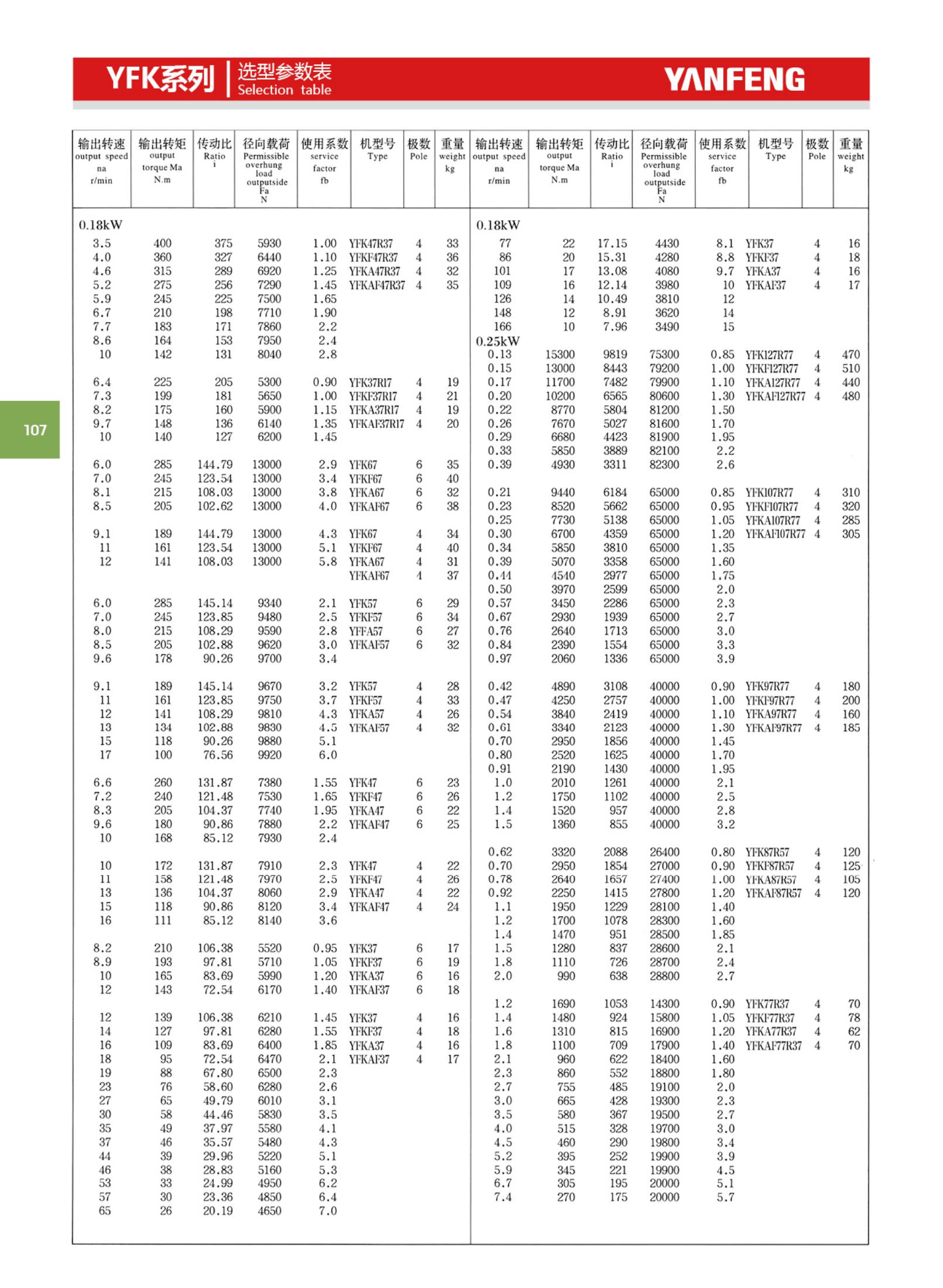

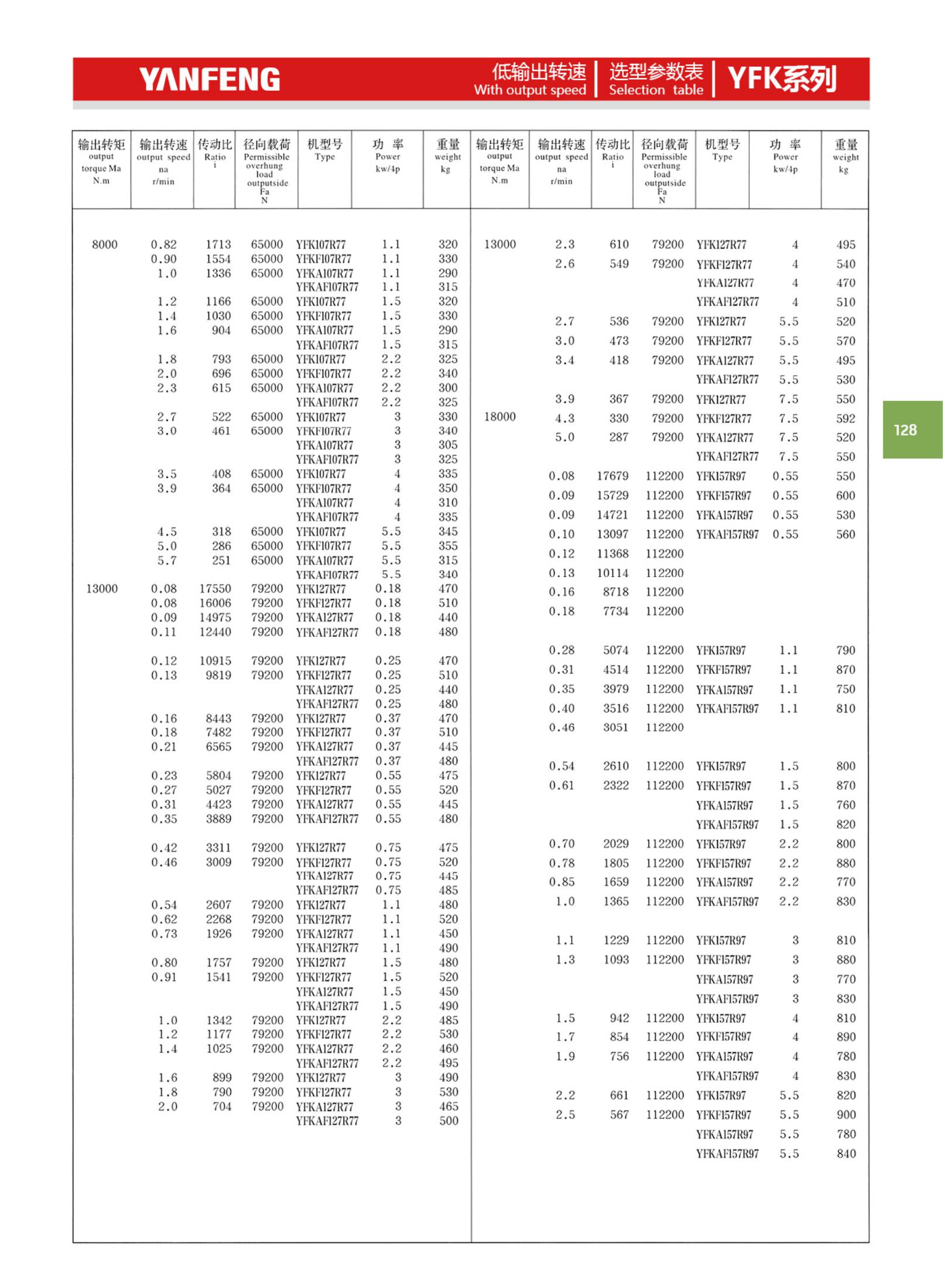

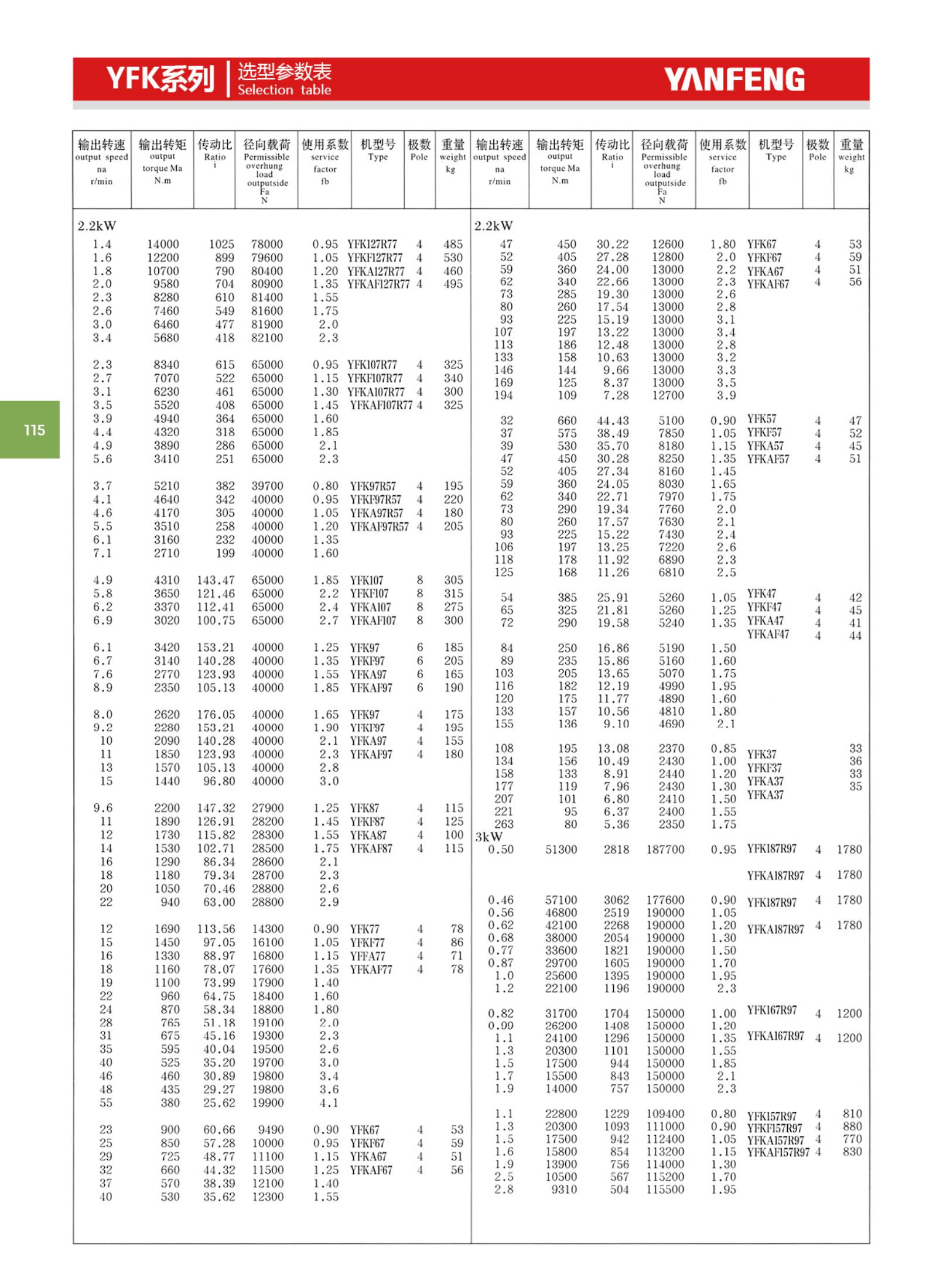

Product Description | |
feature High modular design, with independent intellectual property rights. German worm gears are used to handle worm gears. Through special gear geometry, it has high torque, high efficiency and long life cycle. It can realize the direct combination of two sets of gearboxes. Installation method: foot installation, flange installation, torque arm installation. Output shaft: solid shaft, hollow shaft. | main application Chemical environmental protection metal processing building construction agriculture and food textile and leather forest and paper car washing machine |
Technical data | |
shell material | Cast Iron / Ductile Iron |
shell hardness | HBS190-240 |
gear material | 20crmnti alloy steel |
Gear Surface Hardness | HRC58°~62° |
Gear Core Hardness | HRC33~40 |
Input/Output Shaft Material | 42crmo alloy steel |
Input/Output Shaft Hardness | HRC25~30 |
Gear machining accuracy | Precision grinding, grade 6~5 |
lubricating oil | GB L-CKC220-460, shell withstand voltage 220-460 |
heat treatment | Tempering, bonding, quenching, etc. |
effectiveness | 94%~96% (depending on transmission stage) |
noise (maximum) | 60~68dB. |
Temperature rise (maximum) | 40℃ |
Temperature rise (oil) (maximum) | 50℃ |
vibration | ≤20.μm. |
cringe | ≤20arcmin. |
Bearing brand | Chinese brand bearings, HRB / LYC / ZWZ / C&U. or other brand requirements, SKF, FAG, INA, NSK |
Oil seal brand | NAK --- Taiwan or other brand requirements |
Model size | Shaft diameter (mm) hollow | center height | Output flange diameter | 功Speed (kw) | speed ratio | Allowable torque (nm) | 重量 (Kilogram) | |
37 | φ25K6 | φ30H7 | 100 | φ110/ 160. | 0.18-3.0 | 5.36-106.38. | 200 | 11 |
47 | φ30k6. | Φ35H7 | 112 | φ120/ 200. | 0.18-3.0 | 5.81-131.87. | 400 | 20 |
57 | φ35K6 | Φ40H7 | 132 | Φ155/ 250. | 0.18-5.5. | 6.57-145.14 | 600 | 27 |
67 | φ40k6. | Φ40H7 | 140 | Φ155/ 250. | 0.18-5.5. | 7.14-144.79. | 820 | 33 |
77 | φ50K6 | Φ170 | 180 | Φ170/ 300 | 0.37-11.0 | 7.24-292.18 | 1550 | 57 |
87 | φ60m6. | φ60H7 | 212 | φ215/ 350. | 0.75-22.0 | 7.19-197.18 | 2700 | 85 |
97 | φ70m6. | φ70H7 | 265 | φ260/ 450. | 1.1-30.0 | 8.95-176.05 | 4300 | 130 |
107 | φ90m6. | φ90H7 | 315 | Φ304/ 450. | 3.0-45.0. | 8.74-141.46. | 8000 | 250 |
127 | φ110m6. | φ100H7 | 375 | Φ350/550 | 7.5-90.0 | 8.68-146.07 | 13000 | 380 |
157 | φ120m6. | 120H7 | 450 | φ400/ 660. | 11.0-160.0. | 12.65-150.41. | 18000 | 610 |
167 | φ160m6. | 140H7 | 500 | φ800. | 11.0-200.0 | 17.28-163.91. | 32000 | 1015 |
187 | φ190m6. | 160H7 | 600 | φ800. | 18.5-200.0 | 17.27-180.78 | 50000 | 1700 |

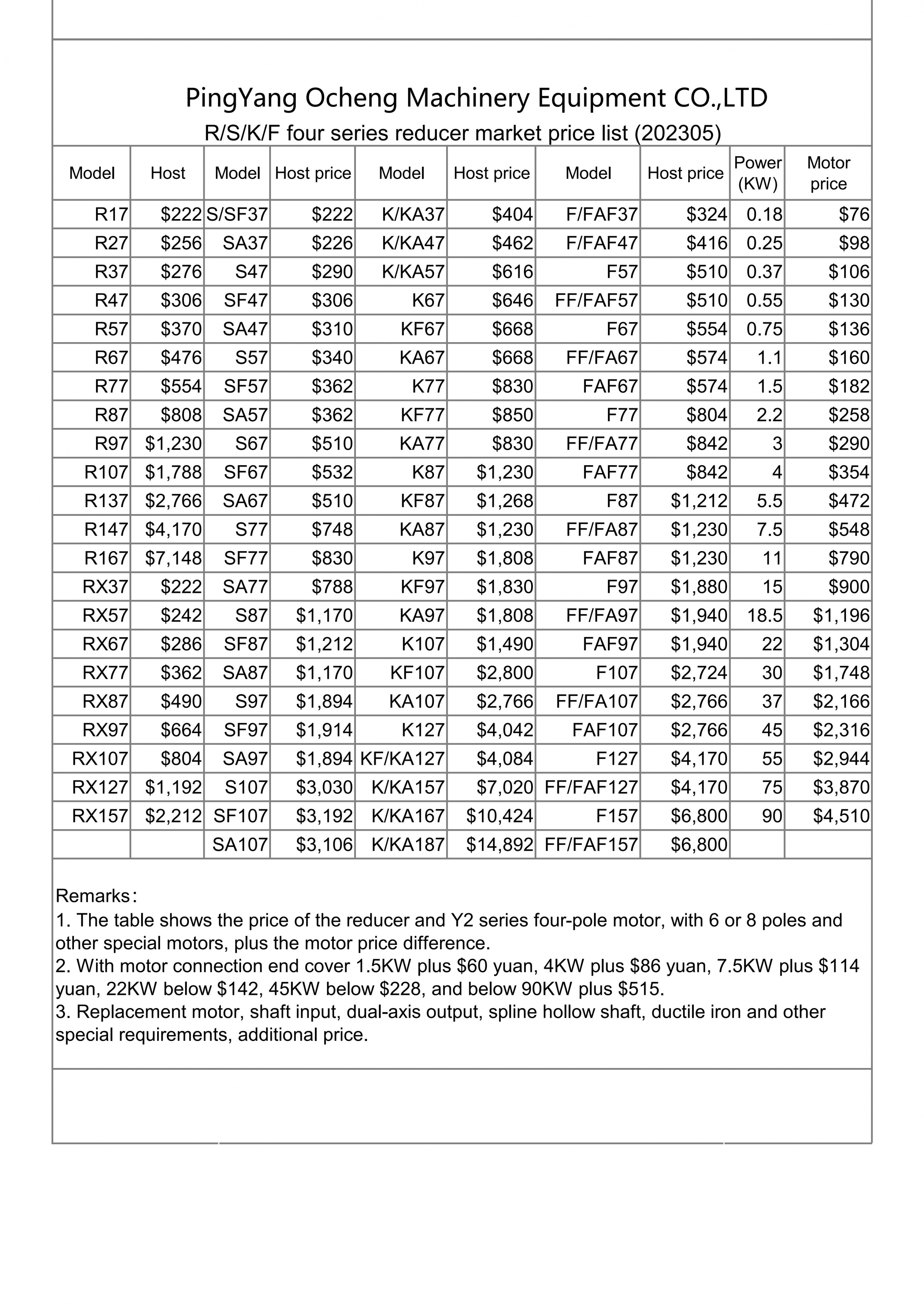

The K series reducer has the following models:
K37 K47 K57 K67 K77 K87 K97 K107 K127 K157 K167 K187
KA37 KA47 KA57 KA67 KA77 KA87 KA97 KA107 KA127 KA157 KA167 KA187
KF37 KF47 KF57 KF67 KF77 KF87 KF97 KF107 KF127 KF157 KF167 KF187
KAF37 KAF47 KAF57 KAF67 KAF77 KAF87 KAF97 KAF107 KAF127 KAF157 KAF167 KAF187
KAZ37 KAZ47 KAZ57 KAZ67 KAZ77 KAZ87 KAZ97 KAZ107 KAZ127 KAZ157 KAZ167 KAZ187
KAT37 KAT47 KAT57 KAT67 KAT77 KAT87 KAT97 KAT107 KAT127 KAT157 KAT167 KAT187
KAB37 KAB47 KAB57 KAB67 KAB77 KAB87 KAB97 KAB107 KAB127 KAB157 KAB167 KAB187
